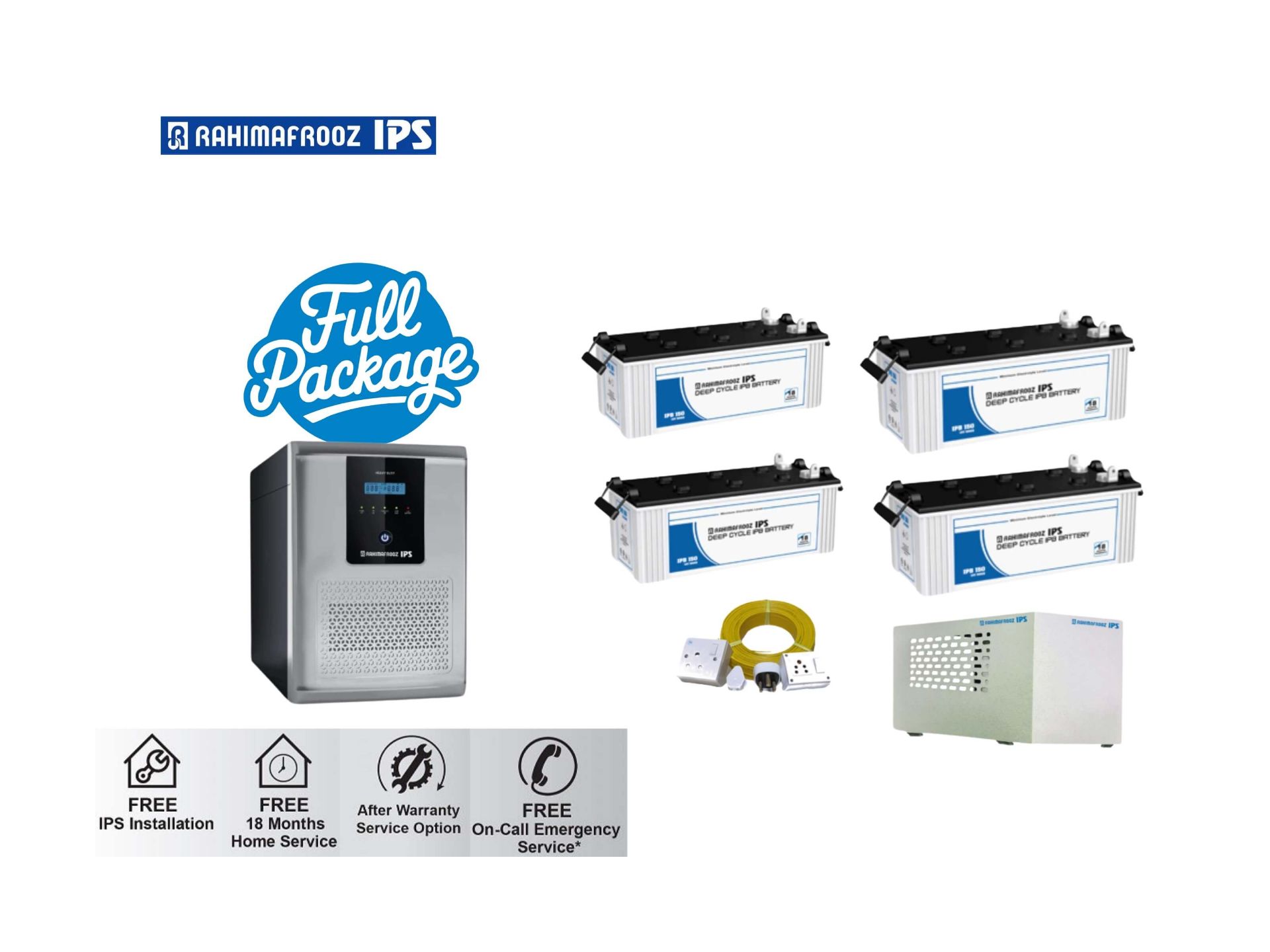

Rahimafrooz RZ-3.7KVA IPS Inverter and Battery Full Package

Brand: RAHIMAFROOZ

Model: IPS RZ 3.7KVA/48V

Technical Specification:
Rated Power: 2,300 W
Output VA: 3.7 KVA
Battery Configuration: 4 × 150 AH (48 V)
Recommended Battery Type: IPB 150 AH
Waveform / Technology: Pure Sine Wave IPS
Control / Charging Technology:
Microcontroller-based intelligent control
PWM-controlled multistage automatic trickle charging
Protection Features:
Overload protection
Short-circuit protection
Over‑voltage protection / over‑charge and discharge protection
Indicator / Display: Status & Fault indication
Bypass Switch: Built‑in bypass switch for AC mains bypass
Float Charging Voltage: Slide switch to select float charging voltage
Mains Input Voltage Range: Wide selectable mains input range
Charging Speed: Quick charging option mentioned
Noise: Noiseless operation

Typical Load / Consumption Pattern:
15 LED / CFL lights (20W)
8 Ceiling Fans (80W)
1 LED / LCD TV (49″, 200W)
4 Computers (250W each)
2 Mobile Chargers (5W each)

Warranty: 02(Two) years
