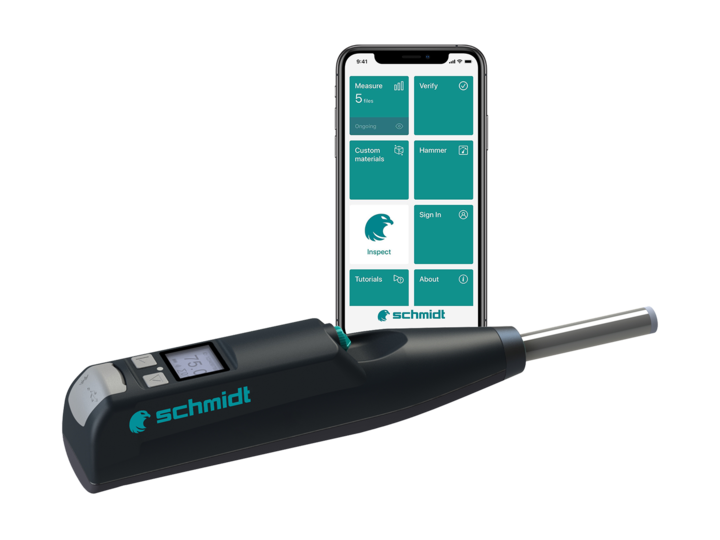

Digital Rebound Hammer

Brand: Schmidt

Model: OS8200

• Should have concrete strength and uniformity testing using rebound hammer
• Should be strength estimation made simple and at a fraction of the
• Should be comprehensive mobile apps and web-based functionality enhancing
• Estimation of compressive strength of concrete / Mapping of concrete uniformity / Control of concrete curing for formwork removal application should have available.
• Main technical parameters
• Instrument Firmware should be automatic calculation of rebound value according to international
• Impact Energy: 207 Nm (N), 0.735 Nm (L) or better
• Compressive Strength Range: 10 to >100 N/mm2 (1'450 to>10'152 psi) or better
• Memory: Instrument memory > 20,000 impacts, Display memory - Memory of iOS or Android device
• Connections: Low energy Bluetooth®, USB for charging and updates
• Display and processing unit iOS® or Android® device (not included)
• Standard: EN12504-2; ASTM C805; JGJ-T23; JSCE; JIS; Mean
• Country of Manufacture: Germany
