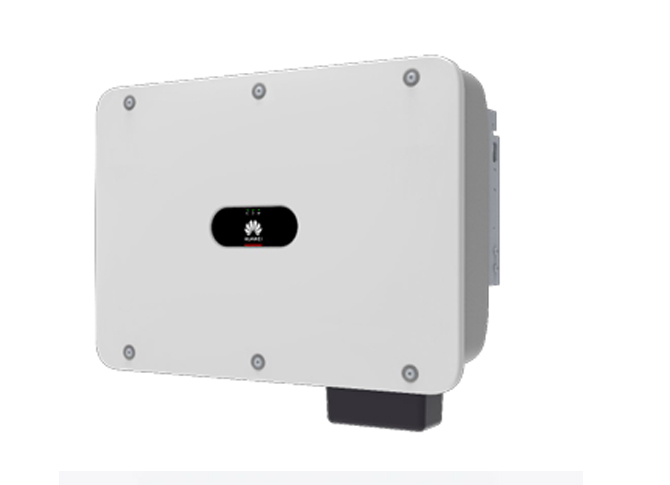

Model: SUN2000-50KTL-M3
Input:
Max.Input Voltage: 1100V
Max. Current per MPPT: 30A
Max. Current per Input: 20A
Max. Short Circuit Current per MPPT :40A
Start Voltage: 200V
MPPT Operating Voltage Range: 200V~1000V
Rated Input Voltage: 600V
Number of Inputs: 8
Number of MPP Trackers: 4
Output:
Rated AC Active Power: 50000W
Max. AC Apparent Power: 55000VA
Max. AC Active Power(cosφ=1): 55000W
Rated Output Voltage: 400Vac/480Vac, 3W+(N)+PE
Rated AC Grid Frequency: 50Hz/60Hz
Rated Output Current: 72.2A @ 400Vac, 60.1A @ 480Vac
Max. Output Current: 79.8A @ 400Vac, 66.5A @ 480Vac
Adjustable Power Factor Range: 0.8 LG... 0.8LD
Max. Total Harmonic Distortion: <3%
