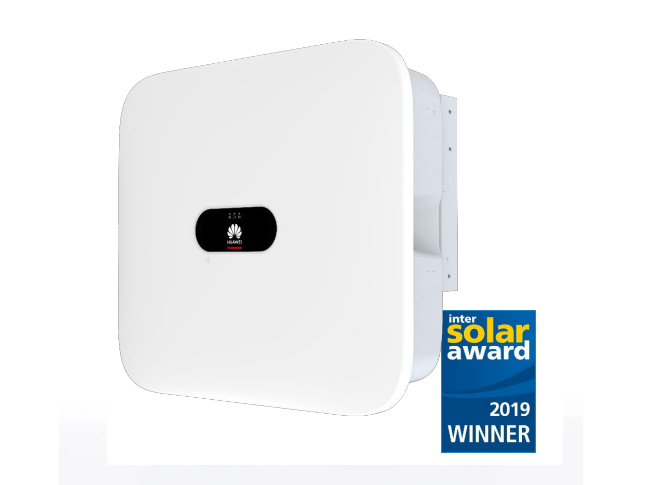

Huawei 20 Kw On grid Inverter (SUN2000-20KTL-M2)
Huawei 20 Kw On grid Inverter (SUN2000-20KTL-M2)

Huawei 20 Kw On grid Inverter (SUN2000-20KTL-M2)

Out of stock

Model: SUN2000-20KTL-M2

  • Recommended max. PV power: 30000Wp
  • Max. input voltage: 1080V
  • Operating voltage range: 160V ~ 950V
  • Start-up voltage: 200V
  • Rated input voltage: 600V
  • Max. input current per MPPT: 27A
  • Max. short-circuit current: 39A
  • Number of MPP trackers: 2
  • Max. number of inputs: 4
Call for Price

Input:
Recommended max. PV power: 30000Wp
Max. input voltage: 1080V
Operating voltage range: 160V ~ 950V
Start-up voltage: 200V
Rated input voltage: 600V
Max. input current per MPPT: 27A
Max. short-circuit current: 39A
Number of MPP trackers: 2
Max. number of inputs: 4

Output:
Grid connection: Three phase
Rated output power: 20000W
Rated AC Apparent power: 20000VA
Max. apparent power: 22000VA
Rated output voltage: 230Vac/400Vac, 3W+N+PE
Rated AC grid frequency: 50Hz/60Hz
Max. output current: 33.5A
Adjustable power factor: 0.8 leading ... 0.8 lagging
Max. total harmonic distortion: ≤3%
