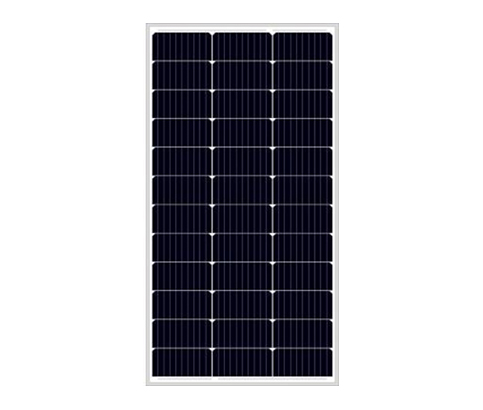

100W Solar Panel - Ipvisola

ELECTRICAL DATA (STC)
Peak Power (Pmax): 100
Maximum Power Voltage (Vmp): 18.56
Maximum Power Current (Imp): 5.39
Open Circuit Voltage (Voc): 21.92
Short Circuit Current (Isc): 5.7
Module Efficiency (﹪): 17.3
* STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C

TEMPERATURE&MAXIMUM RATING
Maximum System Voltage (V): 1000
Maximum Series Fuse Rating (A): 10
Power Tolerance: 0～+3 ﹪
Pmax Temperature Coefficients (W/C): -0.350﹪
Voc Temperature Coefficients (V/C): -0.270﹪
Isc Temperature Coefficients (A/C): +0.048﹪
NOCT Nominal Operating Cell Temperature (C): 45±2
Operating and Storage Temperature (C): -40～+85

MECHANICAL CHARACTERISRTICS
Cell Type: 166x83 Mono
No. of Cells: 36(3x12)
Dimensions: 1075*540*30mm
Weight: 6.1kg
Front Glass: .2mm high transmission,low iron,tempered glas
Frame: Anodized Aluminium Alloy
Junction box: IP65/IP67
Output cables: 2.5mm² cable 50cm+mc4
MaxWind Load/Snow Load: 2400Pa/5400Pa

PACKING WAY
20FT: 10Packages/1200PCS
40HQ: 22Packages/2856PCS
