Features

Brand	LUOYOU
Origin	China
Category	Mechanical Engineering, Air Conditioner
Price	Call for Price

Short Description

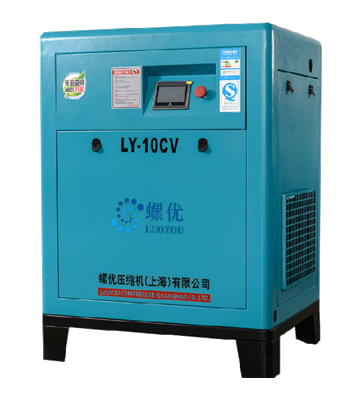

Model: LY-10CV
Cooling Method: Air Cooling
No of Compression Stage: 1
Atmospheric Pressure (kg/cm2): 1.013
Ambient temperature (℃) : ≤50

Specifications

Brand: LUOYOU
Model: LY-10CV
Cooling Method: Air Cooling
No of Compression Stage: 1
Atmospheric Pressure (kg/cm2): 1.013
Ambient temperature (℃) : ≤50

Compressor and Tank
Free Air Delivery (M3/min): 1.1, 39CFM
Working pressure (Bar): 8
Power (Kw): 7.5
Outlet pipe diameter: G 3/4
CFM at 102 PSI    42cfm
Max. PSI: 132 psi
Horsepower: 10 Hp
Coupling: Direct
Air Tank Size (gal.): 65
Tank Description: Horizontal - Attached w/ refrigerated air dryer.
Discharge pressure: 0.8（MPa）
Tank volume: 300(L)

Motor
Noise (dB): 65±2
Input Voltage: 380V/50Hz/3Ph
Motor Power: 7.5Kw
Rotation Speed (rpm): 3,600
Starting Mode: VSD
Protection Grade: IP23
Insulation Class: F
Pump: Twin screw helical oil fluid

Dimension
L (mm): 1,900
W (mm): 730
H (mm): 1,520
Weight(Kg): 425
