Features

Brand	HMDQ
Origin	China
Category	HV Testing Equipment
Price	BDT 375,000.00 BDT 380,000.00

Short Description

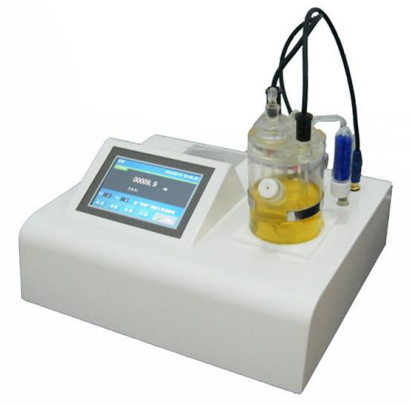

Model: HM401

Display：Color LCD touch screen

Electrolytic rate: 2200ug/s MAX(0-400mA Auto Control)

Electrolytic current control：0～400mA automatic control

Measurement scope：0ug～100mg

Sensitive valve：0.1µg H2O

Accuracy：10µg～1000µg±3µg

Specifications

Brand: HMDQ

Model: HM401

Technical Specification:
Used 240*128 graphic dot matrix liquid crystal, no logo button, friendly interface.
Used a switching constant-current electrolysis electric circuit (proprietary technology), reduces the power consumption of instrument.
With battery portable instrument(polygamy),the battery is fully charged, under the normal testing statecan be used continuously for more than 8 hours; has the battery power detection and display function;
High-precision measuring electrode signal generation and detection circuit, making electrolysis quickly and accurately determine the end point, and has a strong anti-jamming capability;
Use two ways electrolyte to correct the measurement results, there are blank current compensation and balance point drift compensation;
1.Three formulas for users to choose, automatically calculate the moisture content;
2.10 stalls stirring speed adjustment; 10 stalls electrolysis gain adjustment;
3.Has the measuring electrode open-circuit fault, short-circuit fault automatic detection function;
4.Automatically stored with time stamp historical records, store up to 255;
5.With temperature compensation of calendar clock, accurate, automatic recording determination date and time,under the power down state can operate for more than 10 years;
6.With screen protection function, do not operate the instrument for a long time, and automatically turn off the LCD screen, extend the life span LCD, press any key to exit the screen protection status;
7.Have USB interface to facilitate communication with the computer.

Titration method：Coulometric titration（Coulomb analysis）

Display：Color LCD touch screen

Electrolytic rate: 2200ug/s MAX(0-400mA Auto Control)

Electrolytic current control：0～400mA automatic control

Measurement scope：0ug～100mg

Sensitive valve：0.1µg H2O

Accuracy：10µg～1000µg±3µg

          More than 1mg but not greater than ±0.3%

Printer：Miniature thermal printer

Power supply：220V±10%、50Hz

Power：＜ 40W

Ambient temperature：5～40℃

Ambient humidity：≤ 85%

External dimension：340×295×155

Weight：About 5.5kg

Accessories:
1. Color touch screen
2. Printer
3. Electrolytic electrode socket
4. Measuring electrode socket
5. Fixed shaft mounting holes
6. Electrolytic tank socket
7. RS232 Interface
8. Power socket and integrated switch

Description

Used 240*128 graphic dot matrix liquid crystal, no logo button, friendly interface.
Used a switching constant-current electrolysis electric circuit (proprietary technology), reduces the power consumption of instrument.
With battery portable instrument(polygamy),the battery is fully charged, under the normal testing statecan be used continuously for more than 8 hours; has the battery power detection and display function;
High-precision measuring electrode signal generation and detection circuit, making electrolysis quickly and accurately determine the end point, and has a strong anti-jamming capability;
Use two ways electrolyte to correct the measurement results, there are blank current compensation and balance point drift compensation;
1.Three formulas for users to choose, automatically calculate the moisture content;
2.10 stalls stirring speed adjustment; 10 stalls electrolysis gain adjustment;
3.Has the measuring electrode open-circuit fault, short-circuit fault automatic detection function;
4.Automatically stored with time stamp historical records, store up to 255;
5.With temperature compensation of calendar clock, accurate, automatic recording determination date and time,under the power down state can operate for more than 10 years;
6.With screen protection function, do not operate the instrument for a long time, and automatically turn off the LCD screen, extend the life span LCD, press any key to exit the screen protection status;
7.Have USB interface to facilitate communication with the computer.

Titration method：Coulometric titration（Coulomb analysis）

Display：Color LCD touch screen

Electrolytic rate: 2200ug/s MAX(0-400mA Auto Control)

Electrolytic current control：0～400mA automatic control

Measurement scope：0ug～100mg

Sensitive valve：0.1µg H2O

Accuracy：10µg～1000µg±3µg
