Features

Brand	Ayesh@
Origin	Bangladesh
Category	Electrical and Electronics, Automation, PLC Trainer
Price	Call for Price

Short Description

Model: AS-PM001

• Origin(Parts): China, Taiwan, Japan
• Manufacturing: Assemble in Bangladesh
• Included: Installation, Training
• Warranty: 01 year

Specifications

Technical Specification:

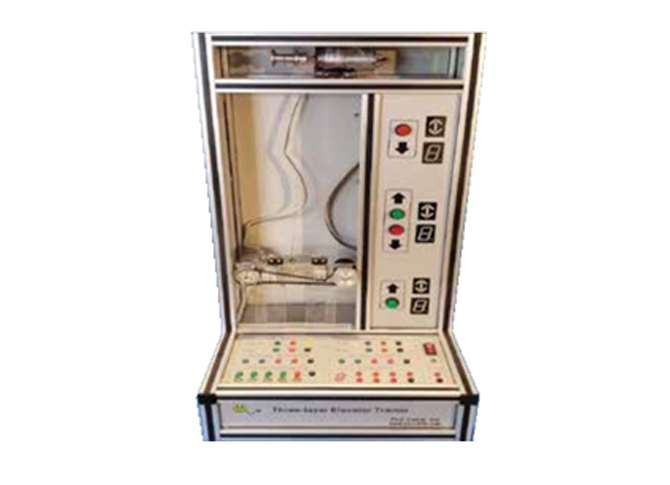

• The elevator trainer represents a cutting-edge educational tool designed to simulate and teach elevator control systems. It leverages the combined power of PLC (Programmable Logic Controller) and microcontroller technology to offer acomprehensive learning experi- ence.
• Complementing the PLC, the microcontroller enhances the trainer's versatility by handling real-time tasks and interfacing with various elevator components.
• It allows for detailed monitoring and control of motor speed, position sensing, and cabin lighting, among other functionalities.
• This dual-system setup not only mirrors industry standards but also equips learners with in-depth knowledge of hybrid control strategies increasingly prevalent in modern elevator systems.
• Through hands-on exercises and simulations, The trainer enables students and professionals to grasp fundamental concepts in elevator automation, from basic operational principles to advanced trouble- shooting techniques.
• By bridging theoretical understanding with practical application, it prepares individuals for the complexities and demands of managing and optimizing elevator systems in diverse industrial settings

Experiment:

• PLC control Experiment, Microcontroller control Experiment
• PC control Experiment

Technical Parameter:

• Total Dimension:L x W x H (mm):450 x 400 x 870 ,
• Input power: single-phase, three-wire AC 220V±10%50Hz/60Hz
• Output power: DC 24V safety terminal output,
• Capacity:200VA, Lift Driven by Stepper Motor
• Driven Belt Size: Length–550mm,Width–18mm, PLC module, Microcontroller
• Control Card,PC software

Items Included:

• 1 x PLC and 1 x LOGO!12/24 RC Software, 1 x Microcontroller Control Card,
• Microcontroller Programming Software,
• Power Supply, USB Lead, Curriculum CD, Operating Manual, Dust Cover with water Proof.
• Original packing: Each equipment delivered in original pack in a single box and end user open the box first time at delivery point.

Accessories:

• Connecting Wire: 1 set
• User Manual: 1
• Standard Accessories

Description

The PLC & Microcontroller-based Elevator Training System is a sophisticated educational platform designed to provide hands-on learning in modern elevator automation. Combin- ing the power of Programmable Logic Controllers (PLC) with microcontroller technology, it simulates real-world elevator operations, enabling detailed control over motor speed, position sensing, and cabin lighting. This dual-system approach mirrors industry practices, offering learners valuable insights into hybrid control strategies. With practical experi- ments in PLC, microcontroller, and PC-based control, the trainer bridges theoretical knowledge with real-world application. Compactly designed with dimensions of 450 x 400 x 870 mm and operating on a single-phase AC 220V±10% 50Hz/60Hz input, it prepares students and professionals for advanced troubleshooting and optimization in diverse industrial elevator systems.
