Features

Brand	SRS
Origin	USA
Category	Electrical and Electronics, Digital Electronics
Price	BDT 120,000.00 BDT 125,000.00

Short Description

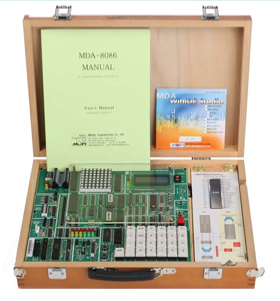

Model: MDA-Win8086
CPU: 8086
MAIN RAM: 64KB (62256 x 2)
MONITOR ROM: 64KB (27256 x 2)
DISPLAY UNIT: LCD (16 x 2 LINE)
I/O PORT: 8255A
SERIAL PORT: RS-232C (8251A x1)
SYSTEM CLOCK: 7456MHz
CLOCK GENERATOR: 8284 (CLOCK GENERATOR)
INTERRUPT CONTROLLER: 8259
TIMER CONTROLLER: 8253
LEVEL METER: HG101A

Specifications

Brand: Midas
Model: MDA-Win8086
CPU: 8086
MAIN RAM: 64KB (62256 x 2)
MONITOR ROM: 64KB (27256 x 2)
DISPLAY UNIT: LCD (16 x 2 LINE)
I/O PORT: 8255A
SERIAL PORT: RS-232C (8251A x1)
SYSTEM CLOCK: 7456MHz
CLOCK GENERATOR: 8284 (CLOCK GENERATOR)
INTERRUPT CONTROLLER: 8259
TIMER CONTROLLER: 8253
LEVEL METER: HG101A
DOT MATRIX LED 8 x 8 (2COLOR)
SOFTWARE:8086 EMBLER
SUPPORT C-LANGUAGE EXAMPLE PROGRAM
MDA-WinIDE8086 Integration Development Environment Program
KEY BOARD: 16 hexadecimal and 10 function keys
System BUS indicator: LED(3∮) x 12
Extended Connector: System BUS : 62 pins and External interface : 20 pins
Stepper motor interface: Driver T.R x 4
A/D, D/A Converter: ADC ADC0804 and DAC DAC0800
POWER: Input : AC 85~264V Output : DC +5V(3A), +12V(1A), -12V(500mA)
Board size (mm): 310 x 265 mm
Case size (mm): 430(W) X 300(D) X 100(H) ±10(mm)
Weight: 5 Kg
Country of Manufacture: Korea

Description

Feature:
Program debugging function by PC
Software
Support Startup Code
TUR//BO-C 2.0 or lat/er
Program download and trace function
Display the register contents
Memory contents modification and dump function
Various Command function
Included stepper motor interface circuit
DOT MATRIX unit
LCD display unit
D/A and A/D converter experiment
Sound experiment with Speaker
Interrupt experiments
Thermistor Sensor
Bar LED unit
Key board experiment
External interface connector
Display the current BUS status on LED
+5V, +12V, -12V 의M.P.S (Free Voltage) Power material case
